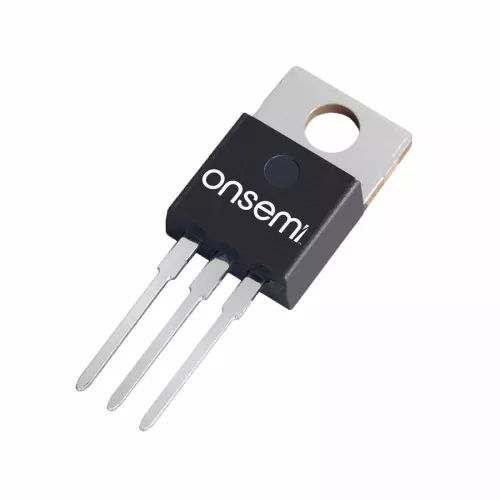

FDP120N10

FDP120N10

FDP120N10

5 of 5

Summery

FDP120N10 is a high quality transistor. Submit an inquiry to buy this transistor directly from China, with no intermediary at the cheapest price and valid warranty.

CategoryTransistor
BrandCHINA-MARKET
Datasheet DataSheet

Quantity

+
-

FDP120N10 Attributes

  • Mounting Style Through Hole
  • Package / Case TO-220-3
  • Vds - Drain-Source Breakdown Voltage 100 V
  • Id - Continuous Drain Current 74 A
  • Rds On - Drain-Source Resistance 12 mOhms
  • Vgs - Gate-Source Voltage -20 to +20 V
  • Vgs th - Gate-Source Threshold Voltage 2.5 V
  • Qg - Gate Charge 86 nC
  • Minimum Operating Temperature -55 C
  • Maximum Operating Temperature +175 C
  • Pd - Power Dissipation 170 W
  • Series FDP120N10
  • Fall Time 15 ns
  • Height 16.3 mm
  • Length 10.67 mm
  • Rise Time 105 ns
  • Factory Pack Quantity 50
  • Typical Turn-Off Delay Time 39 ns
  • Typical Turn-On Delay Time 27 ns
  • Width 4.7 mm
  • Unit Weight: 0.068784 oz
