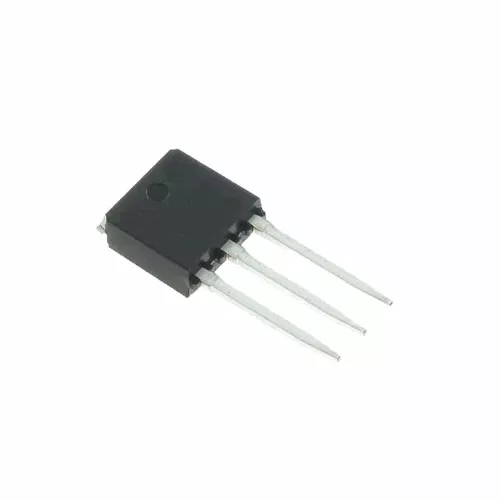

IRFU220NPBF

IRFU220NPBF

IRFU220NPBF

5 of 5

Summery

IRFU220NPBF is a high quality transistor. Submit an inquiry to buy this transistor directly from China, with no intermediary at the cheapest price and valid warranty.

CategoryTransistor
BrandCHINA-MARKET
Datasheet DataSheet

Quantity

+
-

IRFU220NPBF Attributes

  • Mounting Style Through Hole
  • Package / Case TO-251-3
  • Vds - Drain-Source Breakdown Voltage 200 V
  • Id - Continuous Drain Current 5 A
  • Rds On - Drain-Source Resistance 600 mOhms
  • Vgs - Gate-Source Voltage -20 to +20 V
  • Vgs th - Gate-Source Threshold Voltage 1.8 V
  • Qg - Gate Charge 15 nC
  • Minimum Operating Temperature -55 C
  • Maximum Operating Temperature +175 C
  • Pd - Power Dissipation 43 W
  • Fall Time 12 ns
  • Forward Transconductance - Min 2.6 S
  • Height 6.22 mm
  • Length 6.73 mm
  • Rise Time 11 ns
  • Factory Pack Quantity 3000
  • Typical Turn-Off Delay Time 20 ns
  • Typical Turn-On Delay Time 6.4 ns
  • Width 2.38 mm
  • Unit Weight: 0.011993 oz
