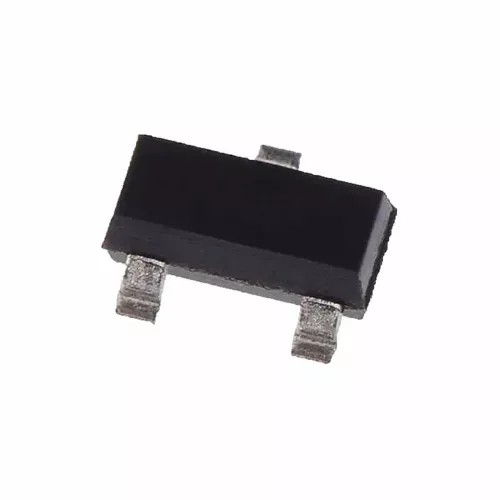

IRLML6402TRPBF

IRLML6402TRPBF

IRLML6402TRPBF

5 of 5

Summery

IRLML6402TRPBF is a high quality transistor. Submit an inquiry to buy this transistor directly from China, with no intermediary at the cheapest price and valid warranty.

CategoryTransistor
BrandCHINA-MARKET
Datasheet DataSheet

Quantity

+
-

IRLML6402TRPBF Attributes

  • Mounting Style SMD/SMT
  • Package / Case SOT-23-3
  • Vds - Drain-Source Breakdown Voltage 20 V
  • Id - Continuous Drain Current 3.7 A
  • Rds On - Drain-Source Resistance 65 mOhms
  • Vgs - Gate-Source Voltage -12 to +12 V
  • Vgs th - Gate-Source Threshold Voltage 4 V
  • Qg - Gate Charge 8 nC
  • Minimum Operating Temperature -55 C
  • Maximum Operating Temperature + 150 C
  • Pd - Power Dissipation 1.3 W
  • Height 1.1 mm
  • Length 2.9 mm
  • Factory Pack Quantity 3000
  • Width 1.3 mm
