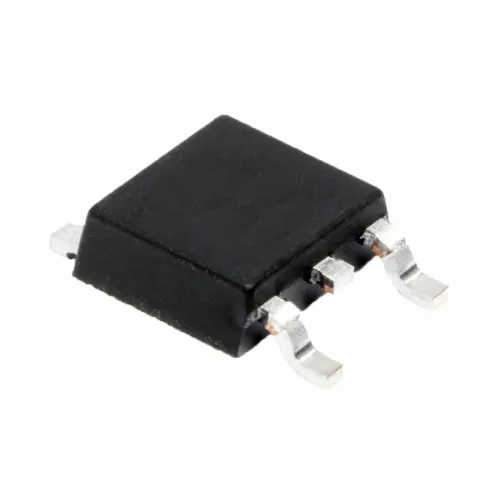

IRLR120NTRPBF

IRLR120NTRPBF

IRLR120NTRPBF

5 of 5

Summery

IRLR120NTRPBF is a high quality transistor. Submit an inquiry to buy this transistor directly from China, with no intermediary at the cheapest price and valid warranty.

CategoryTransistor
BrandCHINA-MARKET
Datasheet DataSheet

Quantity

+
-

IRLR120NTRPBF Attributes

  • Mounting Style SMD/SMT
  • Package / Case TO-252-3
  • Vds - Drain-Source Breakdown Voltage 100 V
  • Id - Continuous Drain Current 10 A
  • Rds On - Drain-Source Resistance 265 mOhms
  • Vgs - Gate-Source Voltage -16 TO +16 V
  • Vgs th - Gate-Source Threshold Voltage 1.8 V
  • Qg - Gate Charge 20 nC
  • Minimum Operating Temperature -55 C
  • Maximum Operating Temperature +175 C
  • Pd - Power Dissipation 48 W
  • Fall Time 22 ns
  • Height 2.3 mm
  • Length 6.5 mm
  • Rise Time 35 ns
  • Typical Turn-Off Delay Time 23 ns
  • Typical Turn-On Delay Time 4 ns
  • Width 6.22 mm
  • Unit Weight: 0.011640 oz
