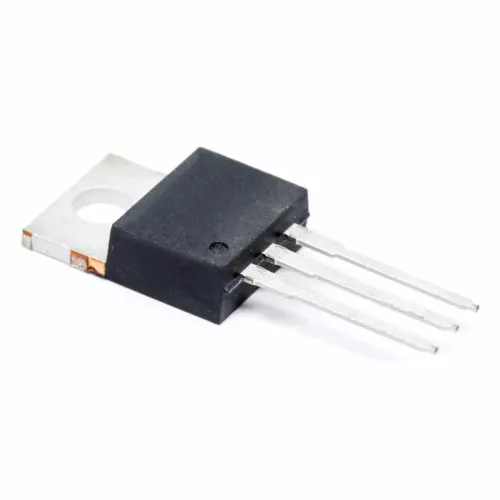

IRF9530NPBF

IRF9530NPBF

IRF9530NPBF

5 of 5

Summery

IRF9530NPBF is a high quality transistor. Submit an inquiry to buy this transistor directly from China, with no intermediary at the cheapest price and valid warranty.

CategoryTransistor
BrandCHINA-MARKET
Datasheet DataSheet

Quantity

+
-

IRF9530NPBF Attributes

  • Mounting Style Through Hole
  • Package / Case TO-220-3
  • Vds - Drain-Source Breakdown Voltage 100 V
  • Id - Continuous Drain Current 14 A
  • Rds On - Drain-Source Resistance 200 mOhms
  • Vgs - Gate-Source Voltage +20 to -20 V
  • Vgs th - Gate-Source Threshold Voltage 4 V
  • Qg - Gate Charge 38.7 nC
  • Minimum Operating Temperature -55 C
  • Maximum Operating Temperature +175 C
  • Pd - Power Dissipation 79 W
  • Fall Time 46 ns
  • Forward Transconductance - Min 3.2 S
  • Height 15.65 mm
  • Length 10 mm
  • Rise Time 58 ns
  • Factory Pack Quantity 2000
  • Typical Turn-Off Delay Time 45 ns
  • Typical Turn-On Delay Time 15 ns
  • Width 4.4 mm
  • Unit Weight: 0.068784 oz
