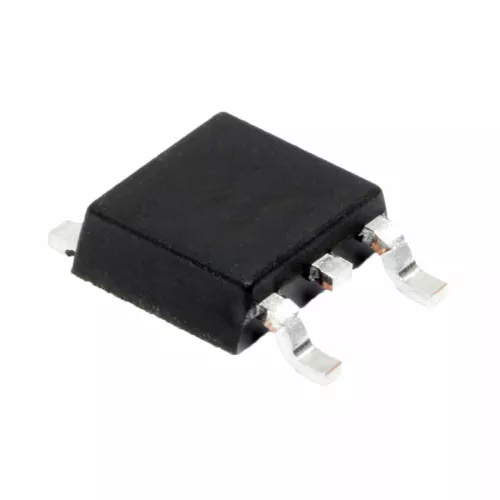

IRF9540NSPBF

IRF9540NSPBF

IRF9540NSPBF

5 of 5

Summery

IRF9540NSPBF is a high quality transistor. Submit an inquiry to buy this transistor directly from China, with no intermediary at the cheapest price and valid warranty.

CategoryTransistor
BrandCHINA-MARKET
Datasheet DataSheet

Quantity

+
-

IRF9540NSPBF Attributes

  • Mounting Style SMD/SMT
  • Package / Case TO-252-3
  • Vds - Drain-Source Breakdown Voltage 100 V
  • Id - Continuous Drain Current 23 A
  • Rds On - Drain-Source Resistance 117 mOhms
  • Qg - Gate Charge 64.7 nC
  • Minimum Operating Temperature -55 C
  • Maximum Operating Temperature +175 C
  • Pd - Power Dissipation 3.8 W
  • Fall Time 51 ns
  • Height 2.3 mm
  • Length 6.5 mm
  • Rise Time 67 ns
  • Factory Pack Quantity 1000
  • Typical Turn-Off Delay Time 51 ns
  • Typical Turn-On Delay Time 15 ns
  • Width 6.22 mm

Customer Reviews

Of5
Share your thoughts with other customers

Write Your Review

this field id required
this field id required
this field id required
this field id required

Need IRF9540NSPBF Supplier in China?

Cooperation with China manufacturers has made YouGou Electronics one of the best Transistor suppliers in China. If you need to buy IRF9540NSPBF from main manufacturers at the wholesale price, submit the form bellow.
