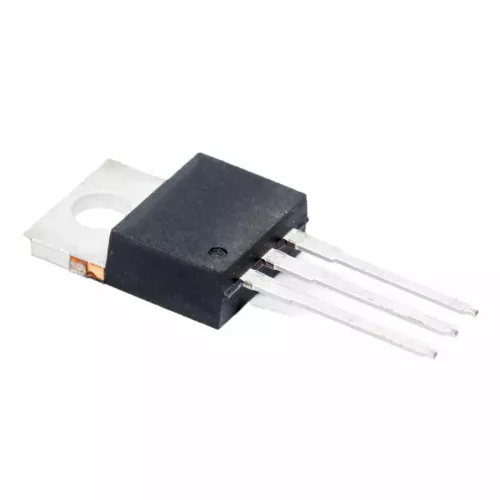

IRFZ44N

IRFZ44N

IRFZ44N

5 of 5

Summery

IRFZ44N is a high quality transistor. Submit an inquiry to buy this transistor directly from China, with no intermediary at the cheapest price and valid warranty.

CategoryTransistor
BrandCHINA-MARKET
Datasheet DataSheet

Quantity

+
-

IRFZ44N Attributes

  • Mounting Style Through Hole
  • Package / Case TO-220-3
  • Vds - Drain-Source Breakdown Voltage 55 V
  • Id - Continuous Drain Current 49 A
  • Rds On - Drain-Source Resistance 22 mOhms
  • Vgs - Gate-Source Voltage -20 TO +20 V
  • Minimum Operating Temperature -55 C
  • Maximum Operating Temperature +175 C
  • Pd - Power Dissipation 110 W
  • Fall Time 30 ns
  • Height 9.4 mm
  • Length 10.3 mm
  • Rise Time 50 ns
  • Factory Pack Quantity 50
  • Typical Turn-Off Delay Time 40 ns
  • Typical Turn-On Delay Time 18 ns
  • Width 4.5 mm
