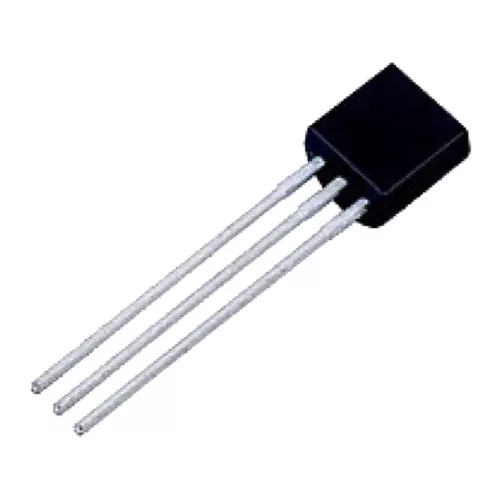

ZTX705 is a transistor from the series Darlington. Transistors can be purchased with specific models and characteristics and used in various devices. One of the most famous transistor series used in various devices is Darlington. In this series, two transistors are used with a special arrangement that creates another transistor with higher sensitivity. Also, because of this transistor structure, it will become a suitable option for switching amplification systems.
ZTX705 can be used as a switch in power supply or fast switching devices. The manufacturing company has also tried to bring the other performance parameters of the product to a suitable value so that developers can build various devices using this part. Reasonable price along with good manufacturing quality are other valuable features of the product.
In general, Darlington transistors are divided into two categories: PNP and NPN, and this product is part of the PNP category. For this reason, you must pay attention to the positive polarity of the collector and emitter bases of the part for installation in the device. The manufacturer has designed long transistor bases that are easily placed on the board. You will also be able to install the product on printed circuit boards with holes.
To install the part on different devices, you don't need a lot of free space on the board; Because the height of the ZTX705 transistor is about 4 mm and its width does not reach 2.5 mm. The weight of 0.016 ounces of the part will not have much effect on the overall weight of your device.
The voltage of the ZTX705 transistor in the bases of collector to emitter and emitter to base is 120 and 10 volts, respectively. Also, the potential difference between the base of the collector and the emitter will be a maximum of 140 volts. Another technical specification that you should know about the part is its power dissipation, which has a negligible value of 1 watt. The instantaneous working current is about 1 ampere.
ZTX705 Transistor Attributes
