SMA-KFD22

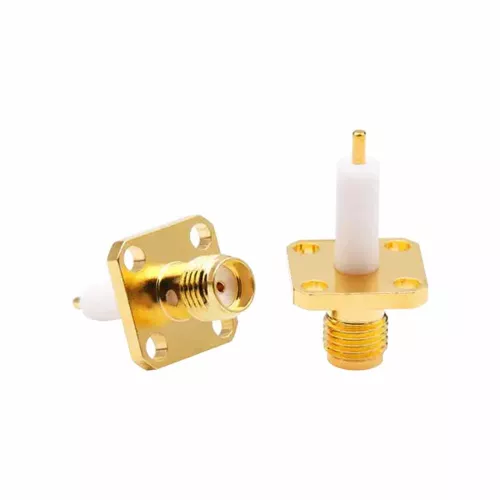

HUADA connector SMA-KFD22

HUADA connector SMA-KFD22

5 of 5

Summery

The SMA-KFD22 RF connector is a 50-ohm connector that operates from DC to 18 GHz, featuring a threaded coupling mechanism for secure connections. It is commonly used in telecommunications, military equipment, and digital communications.

BrandHUADA
Datasheet DataSheet

Quantity

+
-

HUADA connector SMA-KFD22 Attributes

  • Impedance 50 Ω
  • Minimum Operating Temperature -65 °C
  • Maximum Operating Temperature +165 °C
  • Mating Cycles 500 Cycles
  • Mounting Style Flange
  • Contact Plating Gold
  • Captivation NO
  • Series SMA
  • Gender Female
  • Body Plating Gold
  • Insulation Resistance 5000
  • Frequency Range with Flexible Cable 0~12.4 GHz
  • Frequency Range with Semi-rigid 0~18 GHz
  • VSWR with Flexible Cable 1.15+0.02F
  • VSWR with Semi-rigid 1.10+0.02F
