SMA-JWB2

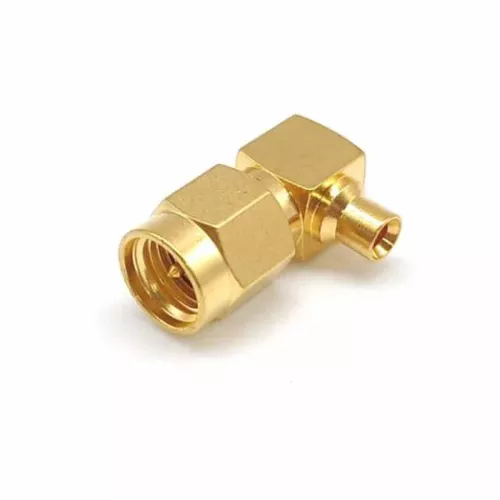

HUADA connector SMA-JWB2

HUADA connector SMA-JWB2

5 of 5

Summery

The SMA-JWB2 RF connector is a right-angle coaxial connector designed for applications up to 6 GHz. It features a robust SMA male plug with a 50Ω impedance, ensuring reliable signal transmission.

BrandHUADA
Datasheet DataSheet

Quantity

+
-

HUADA connector SMA-JWB2 Attributes

  • Minimum Operating Temperature -65 °C
  • Maximum Operating Temperature +165 °C
  • Contact Plating Gold
  • Series SMA
  • Captivation NO
  • Body Plating Gold
  • Cable Type TFlex405, RG-405/U, SM86, SFT-50-2-1
  • Insulation Resistance 5000
  • Gender Male
  • dielectric withstanding voltage 1000 V
  • Frequency Range with Flexible Cable 0~12.4 GHz
  • Frequency Range with Semi-rigid 0~18 GHz
  • VSWR with Flexible Cable 1.15+0.02F
  • VSWR with Semi-rigid 1.10+0.02F
