The SMA–JB2 connector is a type of coaxial RF connector that features a threaded interface designed for use in high-frequency applications. It is commonly used in various telecommunications and RF systems. The SMA-JB2 is a combination of the SMA connector and a junction box (JB) style, which allows for multiple connections in a compact configuration.
The SMA-JB2 connector is designed for high-frequency applications, typically supporting a frequency range from DC (zero) up to 18 GHz, making it suitable for various RF communication needs. It has a characteristic impedance of 50 , which is essential for minimizing signal reflections and maintaining signal integrity. The connector type is a coaxial connector with a threaded interface, providing a secure and stable connection. Materials used in its construction often include brass or stainless steel, ensuring durability and resistance to corrosion in challenging environments. Additionally, the Voltage Standing Wave Ratio (VSWR) of the SMA-JB2 connector is generally around 1.15+0.02×f(GHz), indicating efficient power transfer and minimal signal loss, critical for high-performance RF applications.
The SMA-JB2 connector is engineered for robust performance in demanding RF applications, featuring technical specifications that enhance its durability and reliability. It typically exhibits excellent mechanical strength, able to withstand significant physical stress due to its brass or stainless-steel construction, which also offers resistance to corrosion and environmental factors. The connector is designed for low insertion loss, generally around 0.1 dB or less at specified frequencies, ensuring minimal signal degradation during transmission. The operational temperature range for SMA-JB2 usually spans from -65°C to +165°C, allowing it to perform effectively in extreme conditions. Additionally, the connector is built to endure multiple mating cycles-often rated for over 500 cycles-without loss of performance, ensuring longevity in applications where frequent connections and disconnections are necessary. This combination of low insertion loss, wide temperature range, and high mechanical durability makes the SMA-JB2 connector an ideal choice for telecommunications, antenna systems, and various RF circuit designs.
The SMA-JB2 connector offers several advantages that make it a preferred choice in various RF applications. One of its primary benefits is its compact design, allowing for multiple connections within a small footprint, which is especially useful in densely packed electronic environments. The Connector’s excellent electrical performance, characterized by low insertion loss and a favorable VSWR, ensures efficient signal transmission with minimal degradation, crucial for high-frequency applications. Its robust construction from durable materials like brass or stainless-steel provides significant resistance to corrosion and environmental stress, enhancing longevity and reliability in demanding settings. Furthermore, the SMA-JB2 connector may not be suitable for very high-power applications, as it can be limited by heat dissipation. Additionally, the threaded design, while secure, may result in slower connection times compared to push-on connectors, which could be a drawback in environments requiring frequent changes. Moreover, careful handling is necessary to avoid damaging the connector or the mating surface, as excessive torque can lead to physical stress eventual failure.
The SMA-JB2 connector finds extensive applications across various sectors due to its high-frequency performance and reliable connectivity. In telecommunications, it is commonly used in base stations, antenna systems, and RF modules, where efficient signal transmission is critical. Its compact design allows for multiple connections in space-constrained environments, making it ideal for distributed antenna systems (DAS) and building wireless networks. In the field of test and measurement, the SMA-JB2 is utilized in laboratory equipment and RF test setups, where low insertion loss and precise signal integrity are essential for accurate measurements. Additionally, this connector is prevalent in the aerospace and defense industries, where it is employed in radar systems, satellite communications, and military communications equipment, where durability and performance under extreme conditions are crucial. The SMA-JB2 connector is also found in medical devices, particularly in diagnostic imaging and monitoring equipment, due to its ability to maintain signal quality in high-frequency applications. The versatility of the SMA-JB2 connector across these diverse applications underscores its importance in modern RF and microwave technologies, facilitating reliable connectivity in critical systems.
The SMA-JB2 and SMA-JB3 connectors while similar in many respects, have distinct characteristics that make them suitable for different applications. Both are designed for RF connectivity and share a characteristic impedance of 50 and a frequency range up to 18 GHz, ensuring effective signal transmission. However, the SMA-JB2 typically features a compact junction box configuration, making it ideal for applications with space constrains, as it allows multiple connections in a confined area. In contrast, the SMA-JB3 often has a slightly larger design and may incorporate enhanced mechanical strength and improved thermal performance, making it suitable for high-power applications. The SMA-JB3 may also exhibit better performance in terms of lower insertion loss and a more favorable VSWR in certain configurations. While both connectors are constructed from durable materials, the SMA-JB3 might utilize additional design features for enhanced reliability in extreme environments. Ultimately, the choice between the two connectors depends on specific application requirements, including space, power handling, and performance needs.

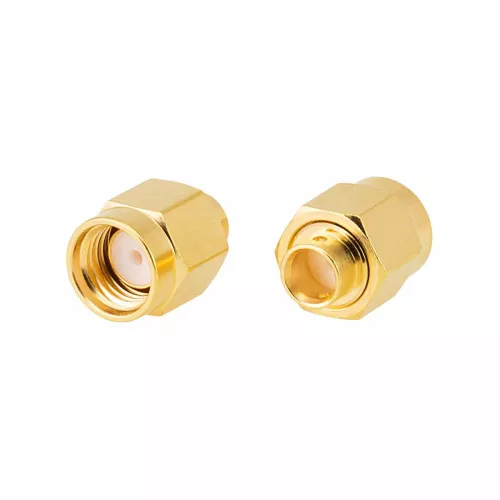

HUADA connector SMA-JB2 Attributes
