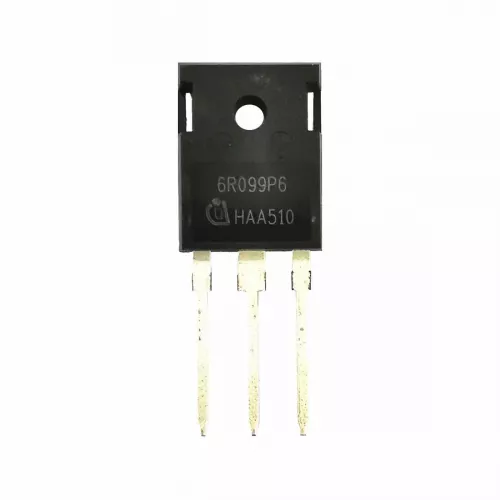

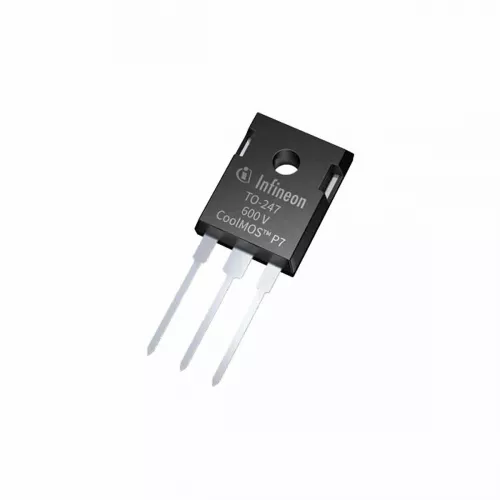

MOSFET IPW60R099P6

IPW60R099P6 MOSFET
IPW60R099P6 MOSFET

IPW60R099P6 MOSFET

5 of 5

Summery

MOSFETIPW60R099P6

CategoryTransistor
BrandInfineon Technologies
Datasheet DataSheet

Quantity

+
-

IPW60R099P6 MOSFET Attributes

  • Maximum Operating Temperature + 150 C
  • Minimum Operating Temperature - 55 C
  • Vds - Drain-Source Breakdown Voltage 600 V
  • Height 21.1 mm
  • Length 16.13 mm
  • Width 5.21 mm
  • Vgs - Gate-Source Voltage - 20 , + 20 V
  • Typical Turn-On Delay Time 20 ns
  • Technology Si
  • Mounting Style Through Hole
  • Transistor Polarity N-Channel
  • Number of Channels 1 Channel
  • Id - Continuous Drain Current 37.9 A
  • Rds On - Drain-Source Resistance 99 mOhms
  • Vgs th - Gate-Source Threshold Voltage 3.5 V
  • Qg - Gate Charge 70 nC
  • Pd - Power Dissipation 278 W
  • Fall Time 5 ns
  • Rise Time 10 ns
  • Factory Pack Quantity 30
  • Typical Turn-Off Delay Time 50 ns
  • Unit Weight 0.211644 oz

Customer Reviews

Of5
Share your thoughts with other customers

Write Your Review

this field id required
this field id required
this field id required
this field id required

Need IPW60R099P6 MOSFET Supplier in China?

Cooperation with China manufacturers has made YouGou Electronics one of the best Transistor suppliers in China. If you need to buy IPW60R099P6 MOSFET from main manufacturers at the wholesale price, submit the form bellow.
