MOSFET IRF9Z24NPBF

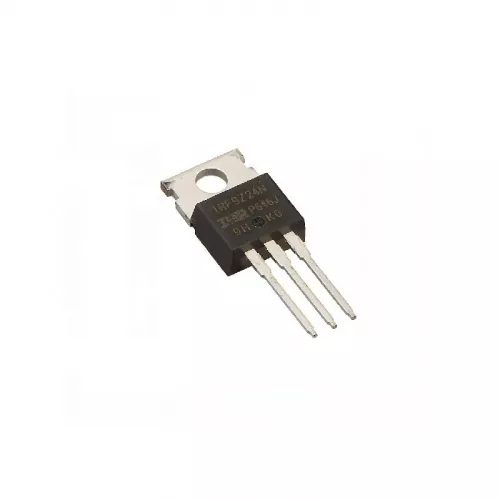

IRF9Z24NPBF MOSFET

IRF9Z24NPBF MOSFET

5 of 5

Summery

MOSFET IRF9Z24NPBF

CategoryTransistor
BrandCHINA-MARKET
Datasheet DataSheet

Quantity

+
-

IRF9Z24NPBF MOSFET Attributes

  • Typical Turn-On Delay Time 13 ns
  • Minimum Operating Temperature -55 C
  • Maximum Operating Temperature +175 C
  • Length 10 mm
  • Width 4.4 mm
  • Height 15.65 mm
  • Vds - Drain-Source Breakdown Voltage 55 V
  • Vgs th - Gate-Source Threshold Voltage 4 V
  • Id - Continuous Drain Current 12 A
  • Rds On - Drain-Source Resistance 175 mOhms
  • Qg - Gate Charge 12.7 nC
  • Forward Transconductance - Min 2.5 S
  • Rise Time 55 ns
  • Typical Turn-Off Delay Time 23 ns
  • Technology si
  • Mounting Style Through Hole
  • Number of Channels 1 Channel
  • Vgs - Gate-Source Voltage - 20 , + 20 V , V
  • Pd - Power Dissipation 45 W
  • Fall Time 37 nc
  • Factory Pack Quantity 50
  • Transistor Type 1 P-Channel
  • Unit Weight 2 g
