IXGH60N60 IGBT Transistor

Undoubtedly, transistors are among the most important components used in the electronic world. This widely used part has various models that show different performance in each device. IGBT transistors are one of these special models that are produced bi-polar with insulated gates. These transistors have semiconductor properties and they work better in high-speed switching circuits. For this reason, keep in mind the ixgn60n60 transistor if you intend to provide transistors for such systems.

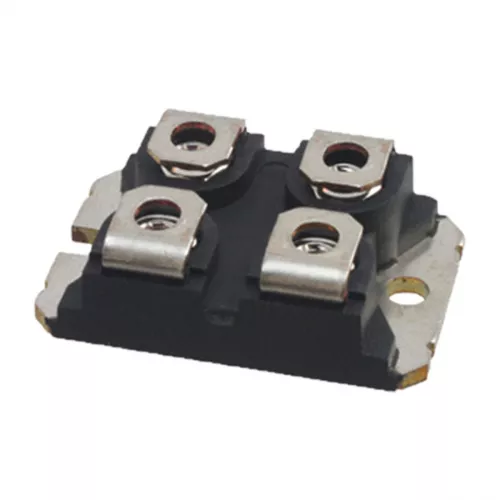

This product is an IGBT transistor manufactured by the IXYS brand and provides attractive features and capabilities to the consumer. First you need to know that the piece has a very high build quality and designed with the latest possible technologies. There are all valid standards such as RoHS in this product that show the correct and accurate performance of the piece.

IXGH60N60 Advantages

Using an attractive design, the manufacturer has been able to turn the installation and use of IXGH60N60 into a great advantage for the consumer. This product is installed on electronic boards using only two screws and does not cause much trouble for soldering. Also, in case of soldering, it does not require much technical knowledge or special tools. The component can easily withstand temperatures above 300 degrees for 10 seconds and do not face any particular problem.

The small size of the piece is another big advantage of this product. Due to these small dimensions, the piece is installed in the least possible space and without noticeable change in board thickness. That's why the ixgn60n60 transistor is an ideal choice for small, portable devices such as robots, power supplies, and motor controllers.

IXGH60N60 structure and terms of use

Aluminum nitride used to insulate the gates of IXGH60N60 increases the piece insulation to more than 3000 volts. Also, there will be no more problems to work in temperatures between 100 and 150 Ċ due to this material and the piece quality.

IXGH60N60 Functional parameters

IXGH60N60 IGBT is classified in the 600V transistors which do not have much problem in high currents and sudden voltage surges. Of course, the piece standard current is about 100 amps. After installation, the piece creates only a 1 millisecond delay in the path, which is not very noticeable. It should be noted that the internal resistance is only 1 milliohm, which is a positive point for sensitive boards.

Buy IXGH60N60 IGBT Transistor from China

To buy IXGH60N60 Transistor with no chain of intermediaries, from the manufacturer company or trusty sources in China or all around the world, add this part and your other required parts to the inquiry basket and submit the inquiry list after you have added and confirmed all of your required parts. We will send you back an invoice with unbeatable prices as soon as possible.

Buy IXGH60N60 IGBT from China

To buy IXGH60N60 IGBT transistor with no chain of intermediaries, from the manufacturer company or trusty sources in China or all around the world, add this part and your other required parts to the inquiry basket and submit the inquiry list after you have added and confirmed all of your required parts. We will send you back an invoice with unbeatable prices as soon as possible.
