Transsistor IRG4BC30UD

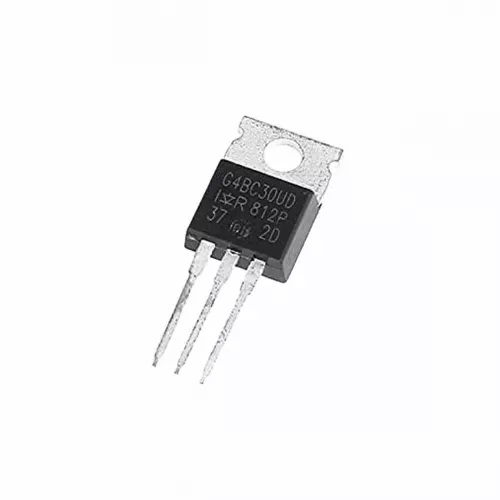

IRG4BC30UD Transistor

IRG4BC30UD Transistor

5 of 5

Summery

Transsistor IRG4BC30UD

CategoryTransistor
BrandCHINA-MARKET
Datasheet DataSheet

Quantity

+
-

IRG4BC30UD Transistor Attributes

  • Voltage - Collector Emitter Breakdown (Max) 600 C
  • Current - Collector (Ic) (Max) 23 A
  • Current - Collector Pulsed (Icm) 92 A
  • Vce(on) (Max) @ Vge, Ic 2.1V @ 15V, 12A
  • Power - Max 100 W
  • Switching Energy 380µJ (on), 160µJ (off)
  • Gate Charge 50 nC
  • Td (on/off) @ 25°C 40/91 ns
  • Operating Temperature -55 ~ 150 (TJ) °C
  • Mounting Type Through Hole
  • Package / Case TO-220-3
  • Supplier Device Package TO-220AB
  • Test Condition 480V, 12A, 23Ohm, 15V
  • Reverse Recovery Time (trr) 42 ns
