7MBI50N-120is a high quality IGBT module. IGBT modules are used in many industrial and home devices these days. Also, professional developers can add many features to their projects by purchasing these modules. For this reason, these attractive modules are produced by different brands with different specifications and reach the hands of developers.
One the famous Chinese brands Fuji Electronics, which specializes in the market of this country, manufactures this module. 7MBI50N-120 IGBT module has been able to achieve the necessary standards in international tests, which is a big advantage for buyers. Despite such standards, the correct operation of the product is guaranteed and the module does not cause problems such as voltage drop or noise when installed in your device.

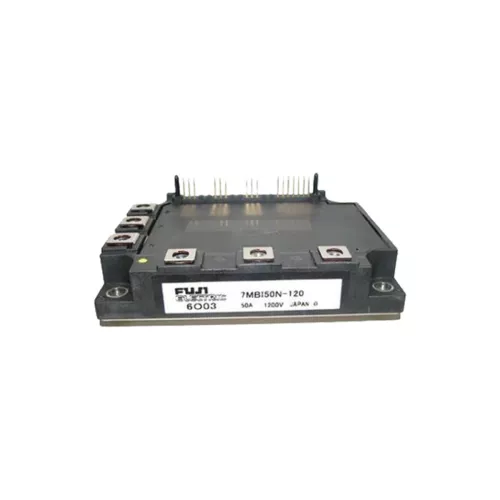

7MBI50N-120 IGBT module produced by Fuji brand is part of 7 in 1 modules and has many connections. For this reason, you can develop very large projects with its help. Also, tolerating a potential difference of 1200 volts with a current of 50 amps will also help you in doing this. The manufacturing company has also designed a plastic frame for the electronic board to play the role of protection. Next to the frame, four screw places are designed so that you can install the module in the best possible way on your electronic device. Of course, the manufacturing company mentioned in the data sheet that the frame screws should not be tightened with a torque of more than 3.5 newton meters.
The igbt module model 7MBI50N-120 has a potential difference of 1200 volts in the collector to emitter part. This voltage in the way of the return gate also has a tolerance of about 20 volts, which is a very ideal figure for a module with this price range. The instantaneous current during board operation is also about 50 amps per millisecond. Of course, this amount happens in about 10 milliseconds when sending current in converter devices.
7MBI50N-120 IGBT module bases are male and can be placed on the breadboard. You can also permanently solder the bases on the printed circuit boards. But the bases are connected to the plastic strap and their soldering should not take much time; because high heat destroys the body. Also, the manufacturer recommends that the plastic frame should be placed in an environment with a temperature between -40 and +125 degrees Celsius. Of course, the pins are not damaged even with a temperature of 150 degrees.
To wholesale 7MBI50N-120 with no chain of intermediaries, from the manufacturer company or trusty sources in China or all around the world, add this part and your other required electronic components to the inquiry basket and submit the inquiry list after you have added and confirmed all of your required parts. We will send you back an invoice with unbeatable prices as soon as possible.
7MBI50N-120 IGBT module Attributes
