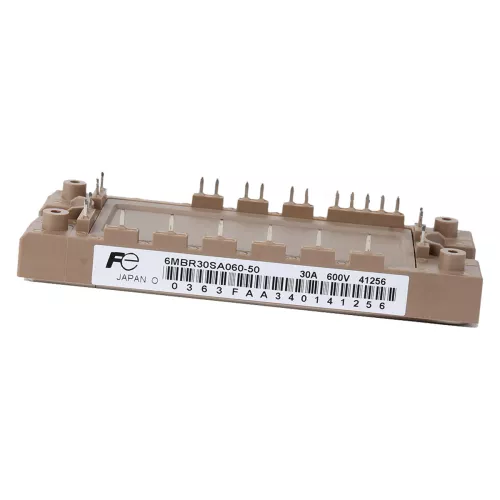

6MBR30SA-060 is a high quality IGBT module manufactured by Fuji Electronics. IGBT modules have been able to find a good place in the electronics world with their very diverse applications. Also, by purchasing this type of module for a simple project, electronic device developers do not need to deal with various parts such as transistors and switches. Fuji Electronics is one of the companies that specializes in the Chinese market. Although the product is made by a Chinese brand, the module has a high build quality and has obtained all the necessary standards such as RoHS. Also, the module has a very reasonable price and is considered a good option for small projects with a low budget.
The IGBT module of the Fuji Electronics brand is made based on the structure of transceiver transistors. For this reason, it has two inverter and converter parts in its plastic frame. Also, in order to install the module and use it, you must have full knowledge of the specifications of these two parts. First of all, you should know that the maximum collector-emitter voltage in the product reaches 600 volts. Also, the voltage fluctuation in the emitter gate is about 20 volts and its value changes in different conditions. The power of the product is only 80 watts in the collector part and it performs well in different projects.
The converter part, which is used to make projects such as the power supply device, has a relatively favorable power. The return voltage in the peak working mode of the module is around 800 volts and its output current is estimated to be around 25 amps in normal mode. Also, the pins of the 6MBR30SA-060 IGBT module are male and fully compatible with cross-core cables. For this reason, installing and connecting the module to the device does not take much time from the user.
First of all, note that the pins on the module can work at temperatures above 150°C without any problems. Of course, the temperature considered by the manufacturing company for the proper functioning of the product is between minus 40 and plus 125 degrees Celsius. For this reason, you must pay attention to the temperature of the environment around the plastic frame of the module during installation. Also around this frame there are some screw places for installation, the screws of which must be tightened with a torque of 1.7 newton meters.
To wholesale 6MBR30SA-060 with no chain of intermediaries, from the manufacturer company or trusty sources in China or all around the world, add this part and your other required electronic components to the inquiry basket and submit the inquiry list after you have added and confirmed all of your required parts. We will send you back an invoice with unbeatable prices as soon as possible.
6MBR30SA-060 IGBT Module Attributes
