IGBT Module FS75R12KE3

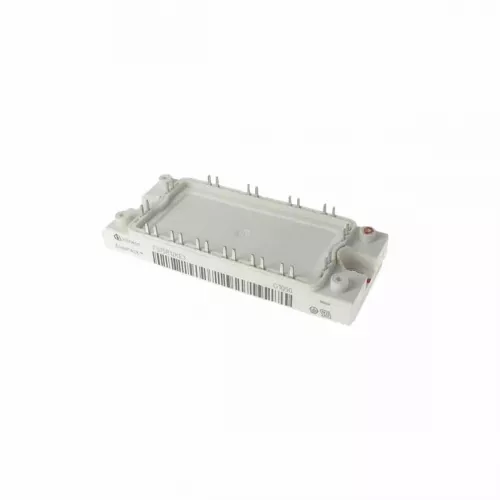

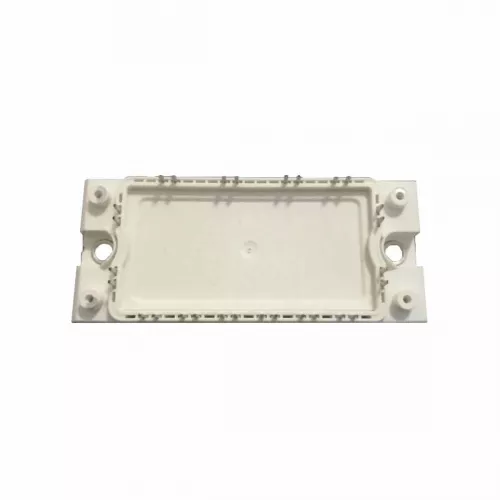

FS75R12KE3 IGBT Module
FS75R12KE3 IGBT Module

FS75R12KE3 IGBT Module

5 of 5

Summery

IGBT Module FS75R12KE3

BrandCHINA-MARKET
Datasheet DataSheet

Quantity

+
-

FS75R12KE3 IGBT Module Attributes

  • Minimum Operating Temperature -40 C
  • Collector- Emitter Voltage VCEO Max 1200 V
  • Height 17 mm
  • Maximum Gate Emitter Voltage 20 V
  • Gate-Emitter Leakage Current 400 nA
  • Maximum Operating Temperature +125 C
  • Collector-Emitter Saturation Voltage 1.7 V
  • Continuous Collector Current at 25 C 105 A
  • Length 107.5 mm
  • Width 45 mm
  • Pd - Power Dissipation 350w
  • Package / Case EconoPACK 2
  • Packaging Tray
  • Mounting Style Chassis Mount
  • Series IGBT3 - E3
  • IGBT Module F75R12KE3 Hex
  • Factory Pack Quantity 10
  • Unit Weight 6.349313 oz

Customer Reviews

Of5
Share your thoughts with other customers

Write Your Review

this field id required
this field id required
this field id required
this field id required

Need FS75R12KE3 IGBT Module Supplier in China?

Cooperation with China manufacturers has made YouGou Electronics one of the best IGBT Module suppliers in China. If you need to buy FS75R12KE3 IGBT Module from main manufacturers at the wholesale price, submit the form bellow.
