If you are planning to build a cash register, the LV4 CCD barcode scanner module will be a good option for you. With this module you can add the ability to scan barcodes to the device and develop a professional project. With the help of this module, all kinds of standard barcodes can be scanned in the shortest possible time.

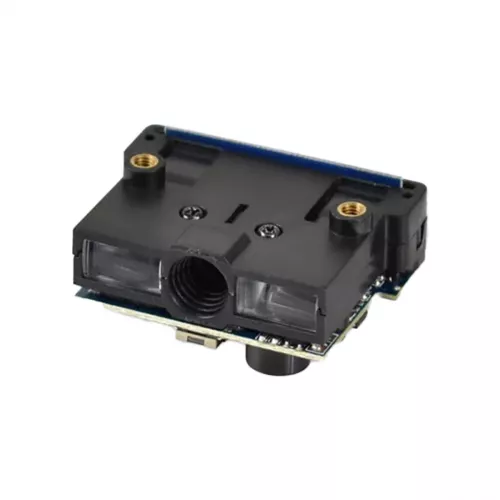

The manufacturer of this product has made every effort to provide a quality but affordable scanner to electronics lovers. For this reason, considering the price range of the product, the scanner has an acceptable speed and quality. Also, a plastic frame under the main board is designed so that the module does not disturb the appearance of your project after installation. If you think you need a lot of space to install this module, do not worry about the installation space at all; Because the module is only 47 by 40 mm, its thickness is not more than 21 mm. So if you have limited space in the project, do not hesitate for a moment to buy the product.

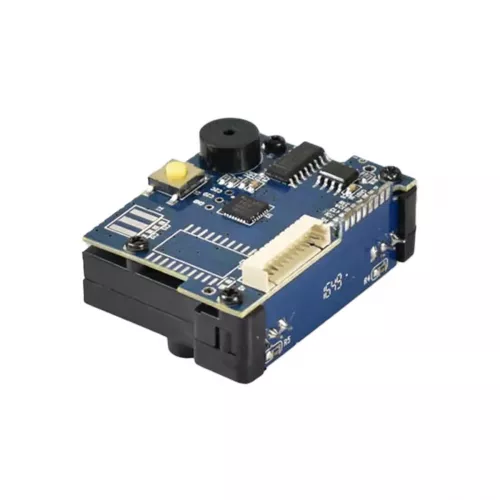

Going through the appearance specifications, we get to the main board, which is mounted on the plastic frame of the main scanner. There is no special part on the board and we only see one main chip which is responsible for processing the scanned images. There is also a small microswitch on the board that compresses the scanner to store barcodes. Barcode scanner module pins and cables

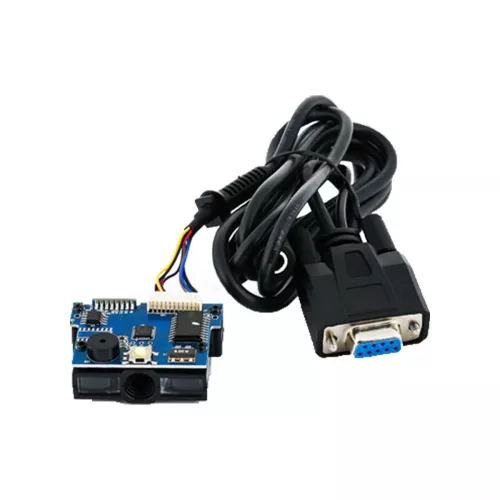

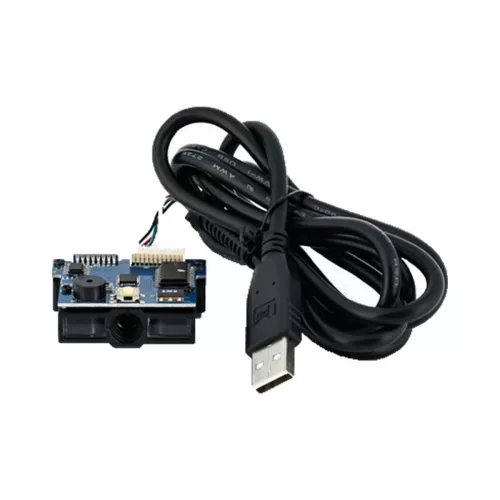

On the edge of the main board you will see several modules with no letters written next to them, which may make it difficult for the user to find the pins. On the other hand, the pins are soldered and look like male jumper pins. The manufacturer has included a flat cable with the module to make it easier for the user to connect the module. This cable is easily mounted on the main pins of the LV4 CCD barcode scanner module board so that there is no problem to connect the board to the microcontroller.
The sensor used in the module is a red fluorescent lamp and you can use 1500 LUX MAX lamp to replace it. Thanks to this sensor and on-board processor chip, the module can perform 100 scans per second. The barcode scan width is up to 55 mm and can detect loads from a distance of 2.75 inches.
To wholesale lV4 CCD BARCODE SCANNER with no chain of intermediaries, from the manufacturer company or trusty sources in China or all around the world, add this part and your other required electronic components to the inquiry basket and submit the inquiry list after you have added and confirmed all of your required parts. We will send you back an invoice with unbeatable prices as soon as possible.
lV4 CCD BARCODE SCANNER Attributes
