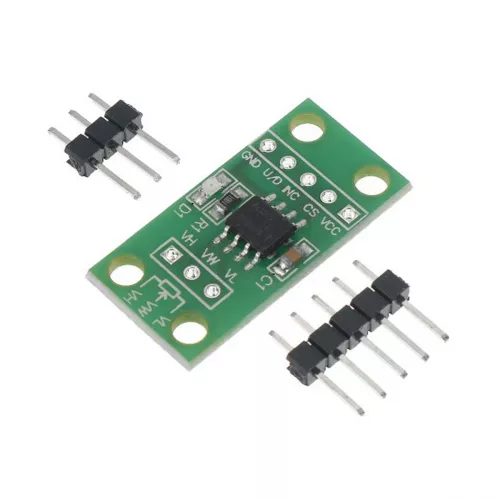

The X9C103S Digital Potentiometer Module is a digital potentiometer module that measures 10 kOhm digital signals. Using this module, you can measure digital signals in the simplest possible way. Of course, this product, due to its desirable specifications, has been able to become very popular among activists in the field of electronic board development. If you also need a digital potentiometer, add this module to your shopping list.

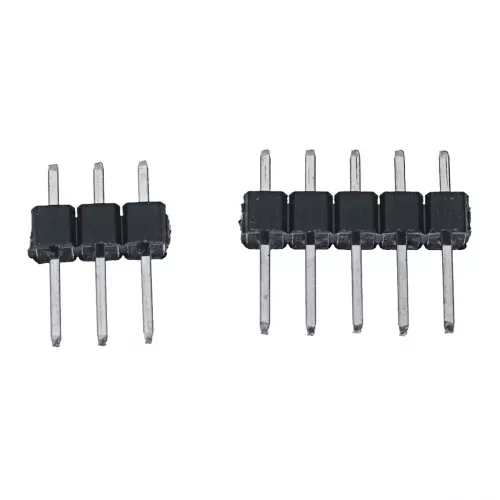

At first glance, the potentiometer module may seem a bit complicated, but the manufacturer has made every effort to simplify the use of its product. For this reason, if you do not have much technical knowledge in the field of electronic board development, you do not need to worry. Just correctly identify the pins on the module board and connect them to your project. To make this easier, the 8-pin male jumper is included with the board so you can use the cross wire to connect to the main pins of the board.
Using this module, you allow your main microcontroller to perform the overall calibration of your project completely automatically. That's why you no longer have to spend hours manually adjusting the board. If you use an analog-to-digital converter (ADC) with this product, you will have precise control over some parameters such as voltage. For example, you can adjust the audio input in an amplifier module to your liking. Three-wire interface for ease of use
Of the eight pins on the module board, three pins are individually designed so you can use the three-wire interface. This interface helps you to incorporate the X9C103S digital potentiometer module into your projects as easily as possible. For this reason, you do not need to engage in soldering to connect or disconnect the module.
To power the module, you need a 5-volt power supply that can supply 4.5 to 5.5 volts to the module. A red LED lamp is installed on the board of the module, which turns on when the power supply is connected to show the user the start of the module. After doing this, you will see that the digital potentiometer module adjusts the signals in the range of 0 to 10 kOhm and 100 different steps.
To wholesale X9C103S with no chain of intermediaries, from the manufacturer company or trusty sources in China or all around the world, add this part and your other required electronic components to the inquiry basket and submit the inquiry list after you have added and confirmed all of your required parts. We will send you back an invoice with unbeatable prices as soon as possible.
X9C103S digital potentiometer module Attributes
