DIODE B1100-13-f

B1100-13-f DIODE

B1100-13-f DIODE

5 of 5

Summery

B1100-13-F diode: The B1100-13-F rectifier diode has a reverse voltage with the peak of 70 volts and a DC voltage of 100 volts.

CategoryDiode
BrandCHINA-MARKET
Datasheet DataSheet

Quantity

+
-

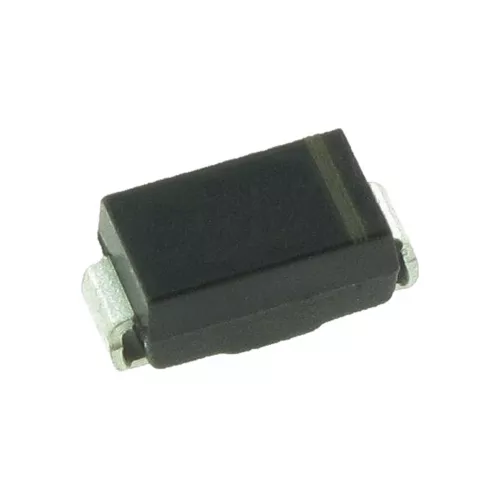

B1100-13-F diode

The B1100-13-F rectifier diode has a reverse voltage with the peak of 70 volts and a DC voltage of 100 volts

B1100-13-F Features

  • Build a protective ring guard for protection
  • Suitable for automatic assembly
  • Low power drop, high efficiency
  • Excessive increase to 30A Peak
  • For use in low voltage, high frequency inverters, free wheeling
  • polarity protection program in High temperature: (+ 260 ° C / 10 seconds in the terminal)
  • Without Lead, halogen and antimony
  • RoHS compliant "green"
  • Green molding composition (without halogen and antimony)
  • Average corrected current-maximum: 1A
  • Maximum current-maximum: 30 amps
  • Maximum reverse voltage [Vrrm]: 100 volts
  • Maximum reverse current: 0.005 amps
  • Forward voltage: 0.69 volts
  • Packing style: SAM
  • Installation method: surface level
  • RMS reverse voltage: 70VR
  • Mechanical data
  • Body material: molded plastic. UL Flammability
  • Rating: 0-94V
  • Moisture Sensitivity: Level 1 per J-STD-020C
  • Terminals: Lead-free plating (matte tin finish).
  • Weldable on MIL-STD-202, Method 208
  • SMA weight : 0.064 g (approx.)

B1100-13-f DIODE Attributes
