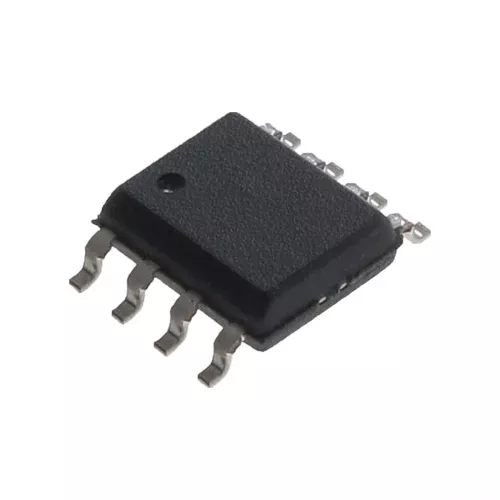

IC MAX3490ESA

ic-MAX3490ESA

The MAX3483, MAX3485, MAX3486, MAX3488, MAX3490 and MAX3491 ICs are low-power 3.3V transmitters and receivers for RS-485 and RS-422 communication. Each part includes a driver and a receiver. The MAX3483 and MAX3488 have limited-speed drivers that minimize EMIs, reduce reflections from improper cables, and allow error-free data transfer at data rates of up to 250 kbps. The MAX3486 transmits with speeds of up to 2.5 Mbps. MAX3485, MAX3490 and MAX3491 transmits at a maximum speed of 10 Mbps. The drivers have a short circuit current and are protected against excessive power dissipation by a thermal shutdown circuit that puts the driver outputs in high impedance mode. Receiver input has a fault-safe feature that guarantees high-logic output when both inputs are open.MAX3488, MAX3490 and MAX3491 have full two-way communication, while MAX3483, MAX3485 and MAX3486 are designed for semi-two-way communication.

Physical features:

• Packing: SOIC
• Tin plated
• Has a surface base
• Number of pins: 8 pins
• Weight: 540.001716 mg
• Technical features
• Data rate: 10 Mbps
• Security number: ESD
• Interface: RS-422, RS-485
• Receptor logical performance, receiver
• Maximum working temperature 85 ° C
• Maximum playback power 471 mW
• Maximum power supply 3.6 volts
• Minimum operating temperature minus 40 ° C
• Minimum supply voltage 3 volts
• Number of drivers: 1
• Number of recipients: 1
• Number of transceivers: 1
• Number of transmitters 1
• Operating power supply 1 mA
• Power supply voltage: 3.3 volts
• Output current: 60 mA
• Output voltage: 12.5 volts
• Release delay: 22 seconds
• Duplex: Simple / Duplex Dimensions Height 1.5 mm
• Length 5 mm
• Width 4 mm RoHS compliant
