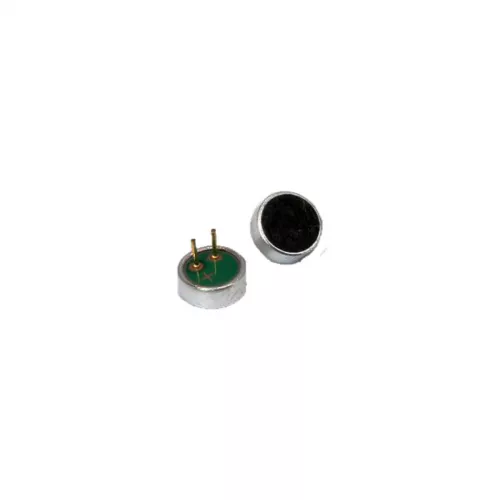

The EM-6022P is classified as a microphone and is a 6 mm mobile capacitive stand-alone capacitive microphone. This product is made by Soberton Inc. brand. The EM-6022P is an electric condenser microphone with an analog output type. This microphone is omnidirectional and its frequency range is 100 Hz to 15 kHz. The sensitivity of this microphone at the sound pressure level of 94 dB is negative 44 dB and the signal-to-noise ratio is 58 dB. The impedance of this microphone is 2.2 kW and its voltage range is 1 volt to 10 volts with a current consumption of 500 microamperes. The port location on this product is at the top. Its terminal is in the form of a PC pin and is produced in the size of 6.00 mm with a height of 2.40 mm and in the shape of a circle.
Product features:
Some important points: 1. Use an anti-static welding machine that can control the soldering temperature automatically. 2. The soldering temperature should be controlled below 320 ° C and the soldering time for each terminal should be 1 to 2 seconds. 3. The microphone should be fixed on a metal block (heatsink) that has high radiation effects and the heatsink should contact it. 4. The microphone can be easily removed by static electricity, and reciprocal action must be taken to remove static electricity. 5. To prevent electric shock to the workbench and the human body should be ground connection
EM-6022P Microphone Attributes
