Gate Drivers IR4427S

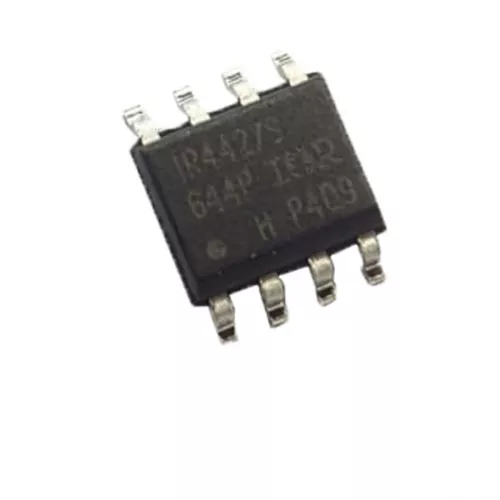

IR4427S Gate Driver

IR4427S Gate Driver

5 of 5

Summery

Gate Drivers 25V dual low-side ,3.3A,85ns,DSO-8

BrandInfineon Technologies
Datasheet DataSheet

Quantity

+
-

IR4427S Gate Driver Attributes

  • Height 1.5 mm
  • Width 4 mm
  • Maximum Operating Temperature + 125 C
  • Minimum Operating Temperature - 40 C
  • Supply Voltage - Min 6 V
  • Fall Time 10 ns
  • Output Current 1.5 A
  • Mounting Style Mounting Style
  • Package / Case SOIC-8
  • Number of Drivers 2 Driver
  • Number of Outputs 2 Output
  • Supply Voltage - Max 20 V
  • Configuration Non-Inverting
  • Non-Inverting 15 ns
  • Packaging Cut Tape/MouseReel/Reel
  • Length 5 mm
  • Logic Type CMOS, LSTTL
  • Maximum Turn-Off Delay Time 150 ns
  • Maximum Turn-On Delay Time 160 ns
  • Operating Supply Current 100 uA
  • Pd - Power Dissipation 625 mW
  • Product Type Gate Drivers
  • Propagation Delay - Max 160 ns
  • Factory Pack Quantity 2500
  • Unit Weight 540 mg
