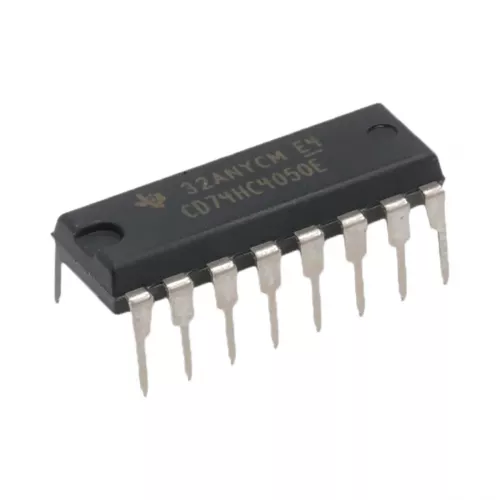

Buffers & Line Drivers CD74HC4050E

CD74HC4050E Driver

CD74HC4050E Driver

5 of 5

Summery

Buffers & Line Drivers CD74HC4050E

BrandTexas Instruments
Datasheet DataSheet

Quantity

+
-
Buffers & Line Drivers CD74HC4050E

CD74HC4050E Driver Attributes

  • Minimum Operating Temperature - 55 C
  • Maximum Operating Temperature + 125 C
  • Length 19.3 mm
  • Width 6.35 mm
  • Number of Input Lines 6 Input
  • Number of Output Lines 6 Output
  • Polarity Non-Inverting
  • High Level Output Current - 5.2 mA
  • Low Level Output Current 5.2 mA
  • Quiescent Current 2 uA
  • Supply Voltage - Max 6 V
  • Supply Voltage - Min 2 V
  • Operating Supply Current 20 uA
  • Package / Case PDIP-16
  • Packaging Tube
  • Function Buffer/Converter
  • Height 4.57 mm
  • Input Signal Type Single-Ended
  • Logic Family HC
  • Logic Type CMOS
  • Number of Channels 5
  • Operating Supply Voltage 2 to 6 V
  • Operating Temperature Range - 55 to + 125 C
  • Output Type CMOS
  • Propagation Delay Time 85 at 2 V, 17 at 4.5 V, 14 at 6 V ns
  • Series CD74HC4050
  • Factory Pack Quantity 25
  • Supply Current - Max 2 uA
  • Technology CMOS
  • Unit Weight 0.033570 oz
