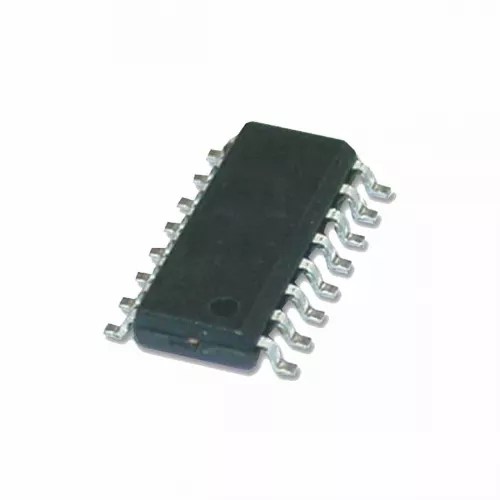

IC M81709FP

M81709FP IC

M81709FP IC

5 of 5

Summery

IC M81709FP

BrandMitsubishi Electric
Datasheet DataSheet

Quantity

+
-

M81709FP IC Attributes

  • Factory Pack Quantity 86
  • Package Bulk
  • Output Configuration Half Bridge (2)
  • Applications AC Loads, Bulbs, General Purpose
  • Interface Logic
  • Load Type Inductive, Capacitive, Resistive
  • Technology Power MOSFET
  • Rds On (Typ) 10 , 2.5 Ohm
  • Current - Output / Channel 2 A
  • Current - Peak Output 2.5 A
  • Voltage - Supply 10 ~ 20 V
  • Voltage - Load 500 V
  • Operating Temperature -20 ~ 125 C
  • Fault Protection Shoot-Through
  • Mounting Type Surface Mount
  • Package / Case 16 (0.209", 5.30 mm
  • Supplier Device Package 16 SOP
