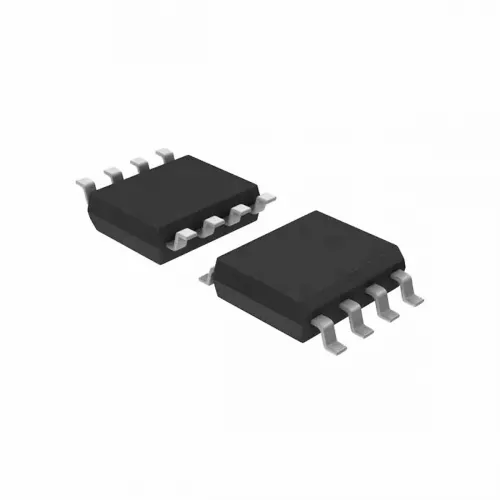

IC TPS2815DR

TPS2815DR IC

TPS2815DR IC

5 of 5

Summery

IC TPS2815DR

BrandCHINA-MARKET
Datasheet DataSheet

Quantity

+
-

TPS2815DR IC Attributes

  • Supply Voltage - Min 4 V
  • Maximum Operating Temperature + 125 C
  • Minimum Operating Temperature - 40 C
  • Rise Time 14 ns
  • Mounting Style SMD/SMT
  • Package/Case SOIC-8
  • Number of Drivers 2 Driver
  • Number of Outputs 2 Output
  • Output Current 2 A
  • Supply Voltage - Max 14 V
  • Configuration Inverting
  • Fall Time 15 ns
  • Series TPS2815
  • Features 2-Input Gates Each Channel
  • Logic Type CMOS
  • Operating Supply Current 200 nA
  • Operating Supply Voltage 4 to14 V
  • Pd - Power Dissipation 730 mW
  • Factory Pack Quantity 2500
  • Unit Weight 76 mg
