AD7864ASZ-1

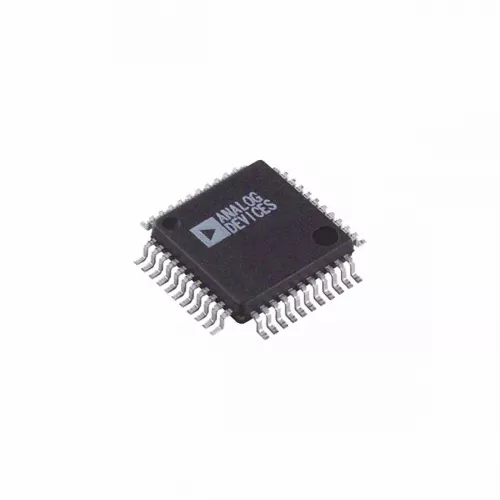

AD7864ASZ-1 IC

AD7864ASZ-1 IC

5 of 5

Summery

AD7864ASZ-1

BrandCHINA-MARKET
Datasheet DataSheet

Quantity

+
-
AD7864ASZ-1 IC ADC 12BIT

AD7864ASZ-1 IC Attributes

  • Mounting Style SMD/SMT
  • Minimum Operating Temperature -40 C
  • Maximum Operating Temperature +85 C
  • Digital Supply Voltage 5 V
  • Length 10 mm
  • Input Voltage: +/- 5 V/+/- 10 V V
  • Unit Weight 0.017588 oz
  • Factory Pack Quantity 96
  • Pd - Power Dissipation 90 mV
  • Package / Case MQFP-44
  • Operating Supply Voltage 5 V
  • DNL - Differential Nonlinearity +/- 0.9 LSB
  • Hength 2 mm
  • Resolution 12 bit
  • Number of Channels 4 channel
  • Interface Type Parallel
  • Sampling Rate 520 kS/s
  • Input Type Single-Ended
  • Analog Supply Voltage 5 V
  • SNR - Signal to Noise Ratio 74 db
  • Gain Error +/-3 LSB
  • INL - Integral Nonlinearity +/- 1 LSB
  • Number of ADC Inputs 4 Input
  • Width 10 mm
