Diodes are among the components that can be seen in the electronic world with different types and capabilities; Because they are present in various devices. Also, some diodes on the market have unique features so that they can be started in certain devices. The rhrp1560 diode is one of these diodes manufactured by the famous Fairchild brand and can perform the functions of a normal silicon diode at a relatively high speed.
Since the component is a hyperfast diode, in addition to normal projects, it can enter certain electronic boards. For example, a part with a power supply with a fast switching feature would be an ideal option. Also, the part is ready to enter other electrical circuits with this feature and shows good performance. It goes without saying that the part has valid electronic standards and is in a good position in terms of construction quality, work stability and useful life.
The rhrp1560 diode is capable of delivering maximum power in a short period of time. Despite this feature, the component can be started with power in a short time and increase system efficiency. This feature, registered by Avalanche Energy, will improve the performance and performance of the part.
Another advantage that makes the product easier to use is the very small size of the part. This high speed diode is about 30 mm high, which will be ideal for standard dimensions of power supplies. Also, the thickness of the piece is about 2.90 mm, which is not a big number. Despite such small dimensions, the rhrp1560 diode helps developers to design electronic boards in the smallest dimensions.
The first important parameter in the rhrp1560 diode is the start-up speed and recovery of 40 nanoseconds. This speed is achieved when the part is operating in the path with a current of 15 amps and a voltage of 2.1 volts at a temperature of 25 degrees Celsius. Also, when the current is reversed and the piece is in the return state, the voltage reaches 600 volts, which is a significant figure.

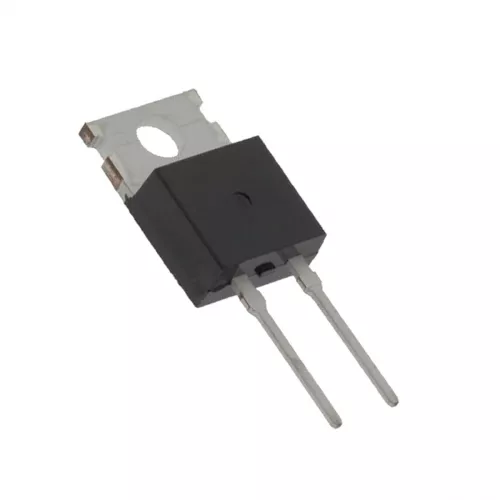

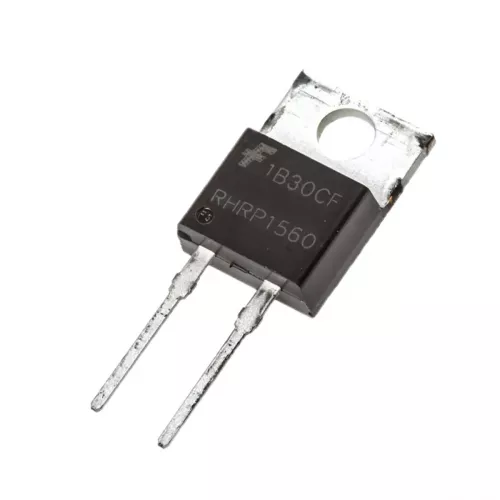

The rhrp1560 diode has two cathode pins and an anode with another cathode edge on top. The bases of the part are plated with nickel to make the diode more connected. These bases are also solderable and can be used on the board.
To wholesale RHRP1560 Diode with no chain of intermediaries, from the manufacturer company or trusty sources in China or all around the world, add this part and your other required electronic components to the inquiry basket and submit the inquiry list after you have added and confirmed all of your required parts. We will send you back an invoice with unbeatable prices as soon as possible.
RHRP1560 Diode Attributes
