Switching Controllers UC2842AN

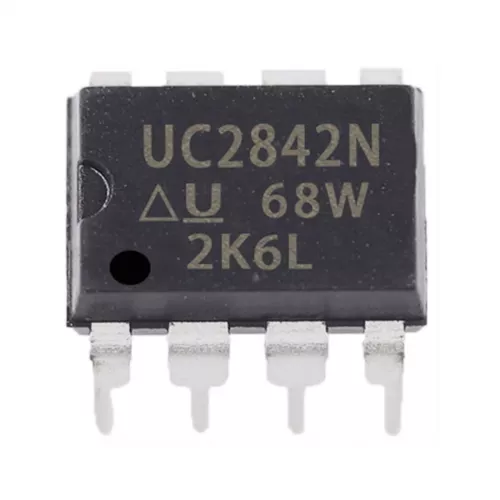

UC2842AN Switching Controller

UC2842AN Switching Controller

5 of 5

Summery

Switching Controllers UC2842AN

BrandTexas Instruments
Datasheet DataSheet

Quantity

+
-

UC2842AN Switching Controller Attributes

  • Topology Boost, Flyback, Forward
  • Number of Outputs 1 Output
  • Switching Frequency 500 kHz
  • Duty Cycle - Max 100 %
  • Input Voltage 12 to 28 v
  • Output Current 200 mA
  • Minimum Operating Temperature: - 40 C
  • Maximum Operating Temperature: + 85 C
  • Mounting Style: Through Hole
  • Package / Case PDIP-8
  • Packaging Tube
  • Fall Time: 50 ns
  • Operating Supply Current: 25 mA
  • Operating Supply Voltage: 12 to 28 V
  • Rise Time: 50 ns
  • Series UC2842A
  • Factory Pack Quantity 50
  • Unit Weight 0.018695 oz
  • Type Current Mode PWM Controllers
