Fixed Inductors SER2915H-682

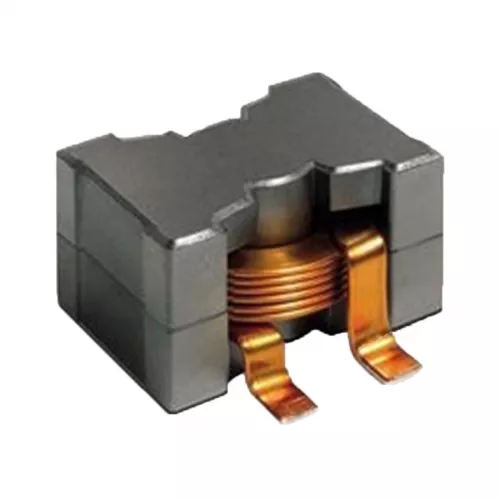

SER2915H-682 Fixed Inductor

SER2915H-682 Fixed Inductor

5 of 5

Summery

Fixed Inductors 6.8uH Shld 20% 30A 2.05mOhms AECQ2

BrandCoilcraft
Datasheet DataSheet

Quantity

+
-

SER2915H-682 Fixed Inductor Attributes

  • Minimum Operating Temperature - 40 C
  • Maximum Operating Temperature + 85 C
  • Type Wirewound
  • Termination Style SMD/SMT
  • Package / Case 19.8 x 15.36 x 27.9 mm
  • Shielding Shielded
  • Inductance 6.8 uH
  • Tolerance 10 %
  • Maximum DC Current 30 A
  • Maximum DC Resistance 2.05 mOhms
  • Saturation Current 36.2 A
  • Self Resonant Frequency 20 MHz
  • Termination Standard
  • Mounting Style PCB Mount
  • Length 27.9 mm
  • Width 19.8 mm
  • Height 15.36 mm
  • Core Material Ferrite
  • Qualification AEC-Q200
  • Series SER
  • Packaging Tray
  • Application Automotive
  • Factory Pack Quantity 25
  • Test Frequency 500 kHz
  • Unit Weight 30 g
